Detailinformationen |
|||
| Gewicht: | 1150 kg | Dimension: | 3800 x 1280 x 2300 mm |
|---|---|---|---|
| Schnittlänge: | 600-2100 mm oder unbegrenzt | Schnittbreite: | 80-2600 mm |
| Dicke: | 60 mm | Geschwindigkeit: | 10 m/min |
| Leistung: | 3.2 KW | Luftdruck: | 0.4-0.8 Mpa |
| Stromspannung: | 380V/50HZ, 220V/60HZ, 3-phasig | Bildschirmgröße: | 7 Zoll |
| Betriebsmodi: | Fotoelektrischer Sensor, Encoder | Klingenentyp: | Doppelblätter |
| Kernkomponenten: | SPS, Motor | Behältergröße: | 20GP |
| Rutsche: | Ja | ||
| Hervorheben: | computerized panel cutting machine with warranty,panel cutter for precise cuts,computerized cutting machine for panels |
||
Produkt-Beschreibung
Computerized Panel Cutting Machine (Panel Cutter)
Technical Specifications
| Dimension (L x W x H) | 3800 x 1280 x 2300 mm |
| Effective cutting length | 600-2100 mm or unlimited |
| Effective cutting width | 80-2600 mm |
| Thickness | 60 mm |
| Speed | 10 m/min |
| Power | 3.2 KW |
| Air pressure | 0.4-0.8 Mpa |
| Voltage | 380V/50HZ, 220V/60HZ, 3-Phase |
| Weight | 1150 KG |
Key Features
- User-friendly operation via 7-inch touch screen interface
- Dual operation modes: photoelectric sensor and encoder for versatile material cutting

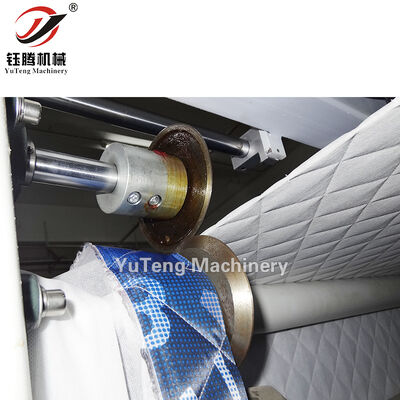

- Double-blade system ensures precise edge cutting
- Compatible with quilting machines or standalone operation
- Space-saving sliding board design optimizes factory floor space
- Compact shipping design fits in one 20GP container with quilting machine

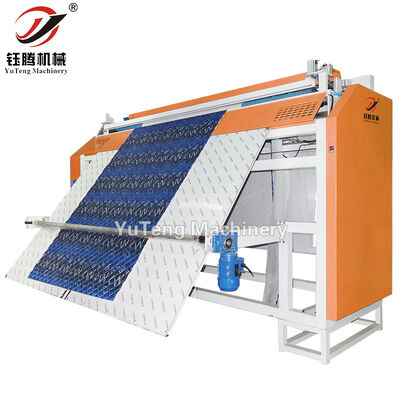

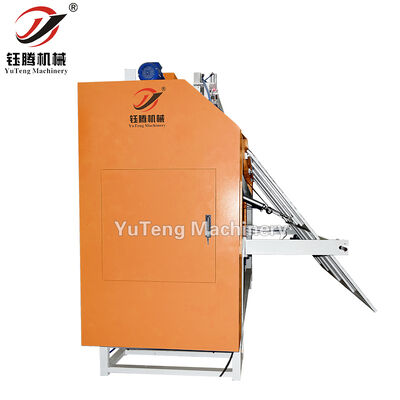

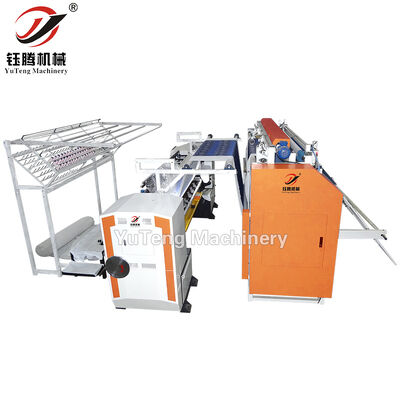

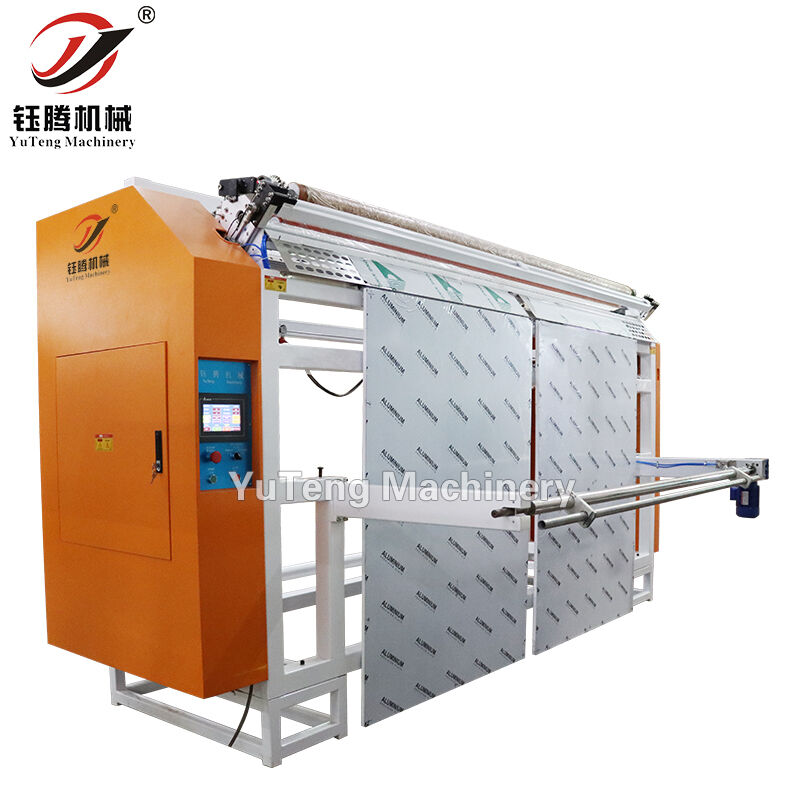

Machine Gallery
