Detailinformationen |
|||
| Gewicht: | 650 kg | Kernkomponenten: | SPS, Motor |
|---|---|---|---|
| Stromspannung: | 220 V, 380 V | Maschinengröße: | 3200*2200*2500 mm |
| Schnittbreite: | 2400 Millimeter | Schnittlänge: | Min 30cm - unendlich |
| Schnittgeschwindigkeit: | Vertikaler Schnitt 10 m/min, horizontaler Schnitt 5 s/Schnitt | Maschinengewicht: | 600 kg |
| Maximale Kraft: | 1,8 kW | Stromspannung: | 380V/50Hz, dreiphasig |
| Touch-Screen: | 5 Zoll | Aufschlitzen von Blättern: | Versteckt |
| Elektrische Steuerung: | Länge und Breite | Einspeisung oben: | Artikelpunkte |
| Encoder für Y-Dimension: | Zähllänge | ||
| Hervorheben: | automatic computerized bed cover cutter,computerized cutting machine for bed covers,bed cover cutting machine with warranty |
||
Produkt-Beschreibung

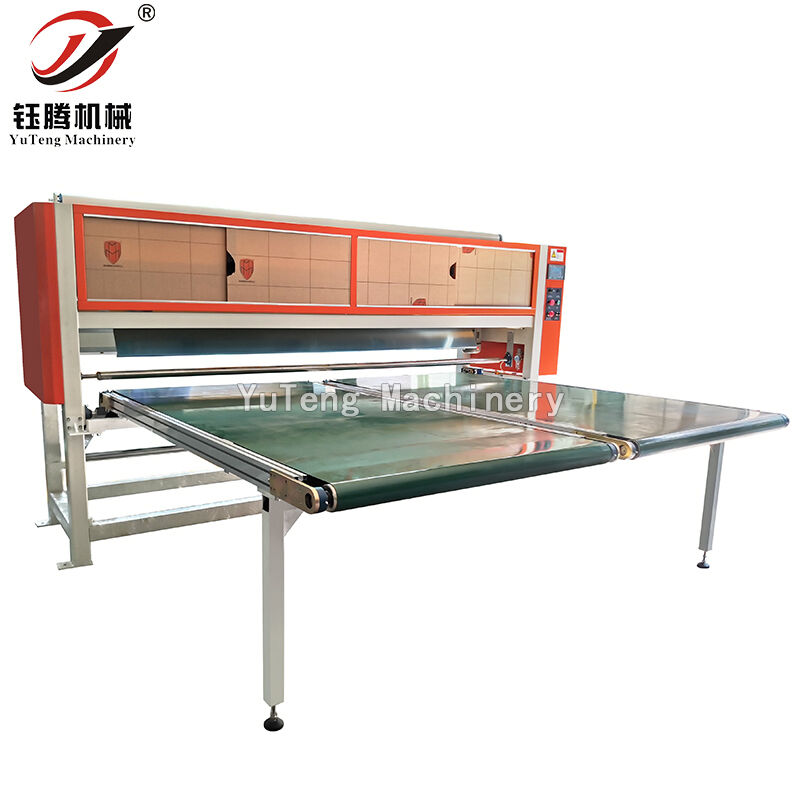

Automatic Computerized Bed Cover Cutting Machine
Product Main Features
- 5" touch screen with large display for easy operation

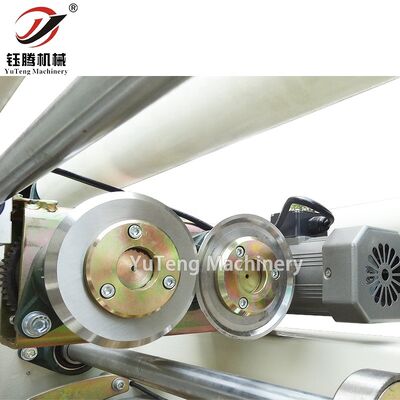

- Hidden slitting blades for enhanced safety and convenience
- Electric controls for precise length and width adjustments
- Feed-in top with article points for even pressure distribution and smooth material feeding
- Y-dimension encoder for accurate length measurement with conveyor belt mechanical discharge
Purpose
This machine is designed for crosscutting, slitting, and edge trimming quilted fabric. It can operate in tandem with quilting machines and rolling devices or function independently.
Technical Parameters
| Model | YTCM96-C |
|---|---|
| Machine size (L×W×H) | 3200×2200×2500 (mm) |
| Cutting width | 2400mm (customizable) |
| Cutting length | Min 30cm - Infinite |
| Cutting speed | Vertical cut 10m/min, horizontal cut 5 s/cut |
| Machine weight | 600KGS |
| Max power | 1.8KW |
| Voltage | 380V/50HZ, 3-Phase |
Effect Diagram
Certificate
Company Pictures
