Detailinformationen |
|||
| Gewicht: | 1300 kg | Max. X-Abmessung: | 2300 mm |
|---|---|---|---|
| Max. Y-Abmessung: | 300mm | Stromversorgung: | 380V/50Hz, 220V/60Hz |
| Maschinenabmessungen: | 3700 mm * 1100 mm * 1850 mm | Betriebsluftdruck: | 0,4 ~ 0,8 MPa |
| Materialstärke: | 3-80mm | Schnittgeschwindigkeit: | 10 (m/min) |
| Leistung: | 2.6kw | Kernkomponenten: | SPS, Motor |
| Bildschirmgröße: | 7" Touch Screen | Aufschlitzen von Blättern: | Versteckt |
| Zufuhr-System: | Mechanischer Austrag des Förderbandes | Kontrolltyp: | Elektrische Steuerung für Länge und Breite |
| Drucksystem: | Einspeisung oben mit Artikelpunkten | ||
| Hervorheben: | computer quilting fabric cutter,computerized fabric cutting machine,quilting fabric cutter with warranty |
||
Produkt-Beschreibung

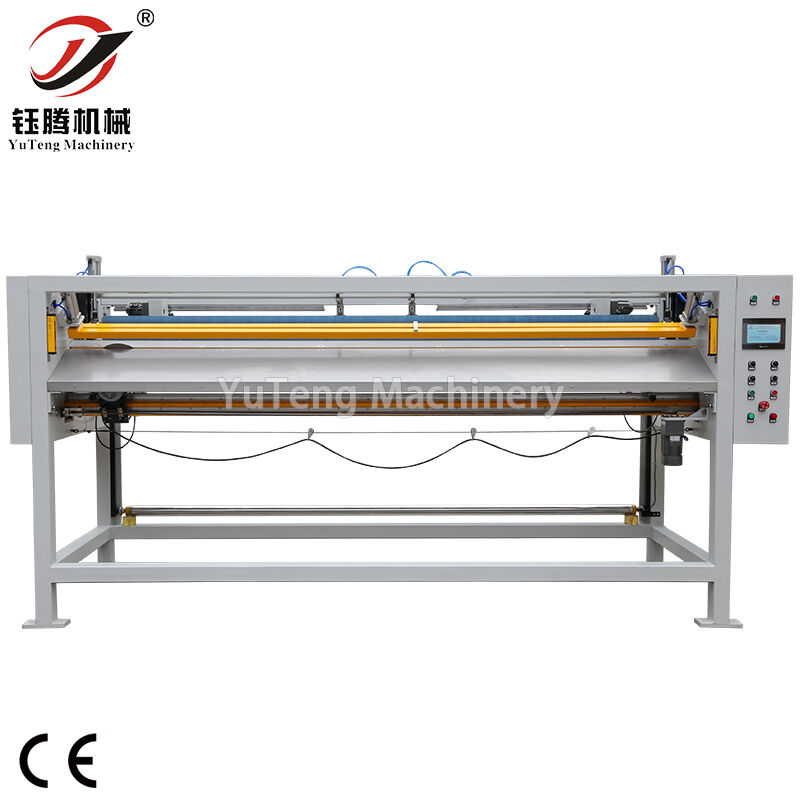

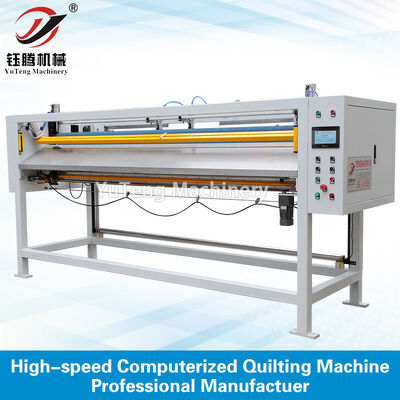

Computer Quilting Fabric Cutting Machine
Product Features
- 7" touch screen with large display for easy operation
- Hidden slitting blades for convenience and safety
- Electric controls for precise length and width cross-cutting
- Feed-in top with article points for even pressure distribution
- Y-dimension encoder for accurate length measurement
- Conveyor belt mechanical discharge for efficient material handling
Purpose
This machine performs crosscutting, slitting, and edge trimming of quilted fabric. It can operate in tandem with quilting machines and rolling devices, or function independently.
Technical Specifications
| Parameter | Value |
|---|---|
| Max. X Dimension | 2300mm |
| Max. Y Dimension | 300mm |
| Power Supply | 380V/50HZ or 220V/60HZ |
| Dimensions (L×W×H) | 3700mm × 1100mm × 1850mm |
| Weight | 1300kg |
| Operating Air Pressure | 0.4~0.8Mpa |
| Material Thickness | 3-80mm |
| Speed | 10 M/Min |
| Power | 2.6KW |

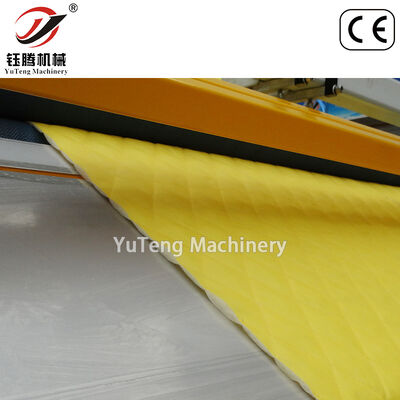

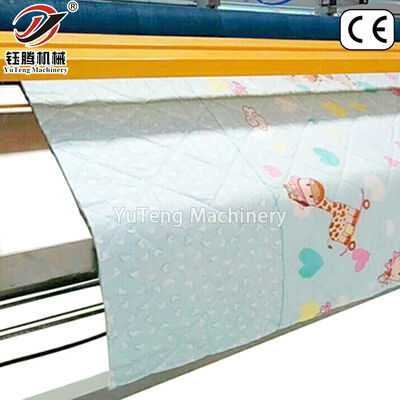

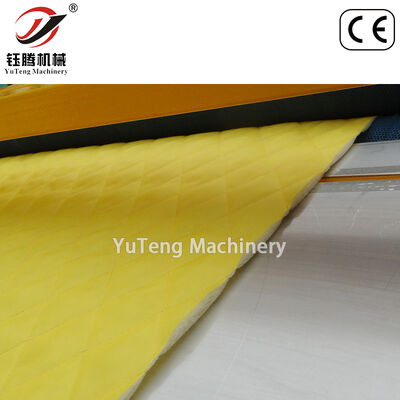

Product Demonstration
Certifications
Company Information
Ordering & Support
- Delivery Time: Within 35 days after receiving 30% deposit
- Payment Terms: 30% deposit, 70% balance before shipment
- Shipping Options: FOB, CIF, CFR, etc.
- Warranty: One year comprehensive coverage
- Customization: Available to meet specific requirements
- After-Sales Service: Dedicated technical support
