Detailinformationen |
|||
| Bildschirmgröße: | 7" Touch Screen | Versteckte Schlitzklingen: | Ja |
|---|---|---|---|
| Elektrische Steuerung: | Länge und Breite | Einspeisung oben: | Mit Artikelpunkten |
| Encoder für Y-Dimension: | Zum Zählen der Länge | Abmessungen: | 3700x1200x1940 mm |
| Schnittlänge: | 600-2100 mm oder unbegrenzt | Schnittbreite: | 80-2400 mm |
| Dicke: | 60 mm | Geschwindigkeit: | 10 m/min |
| Leistung: | 2,6 kW | Luftdruck: | 0.4-0.8 Mpa |
| Stromspannung: | 380V/50HZ, 220V/60HZ, 3-Phasen | Gewicht: | 950 Kilo |
| Kernkomponenten: | SPS, Motor | ||
| Hervorheben: | automatic mattress quilting machine,computerized fabric panel cutter,quilting fabric cutting machine with warranty |
||
Produkt-Beschreibung

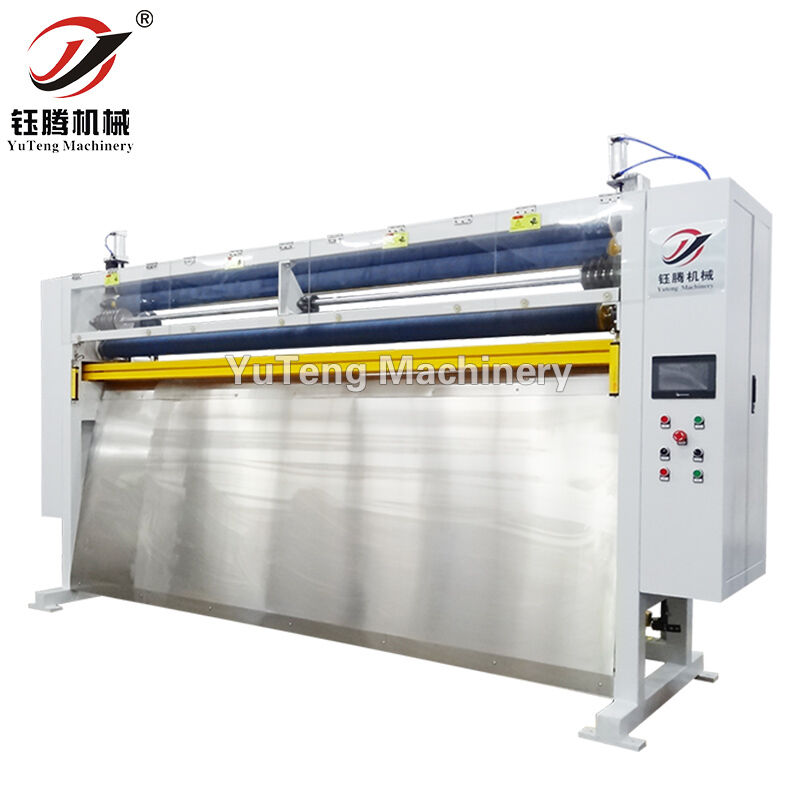

Automatic Mattress Quilting Fabric Panel Cutting Machine
Product Features
- 7" touch screen with large display for easy operation
- Hidden slitting blades for enhanced convenience and safety
- Electric controls for precise length and width adjustments
- Feed-in top with pressure rollers for even material handling
- Y-dimension encoder for accurate length measurement
- Conveyor belt mechanical discharge for efficient material handling
Purpose
This machine is designed for crosscutting, slitting, and edge trimming of quilted fabric. It can operate in tandem with quilting machines and rolling devices or function independently.
Technical Specifications
| Dimension (L x W x H) | 3700 × 1200 × 1940 mm |
|---|---|
| Effective cutting length | 600-2100 mm or unlimited |
| Effective cutting width | 80-2400 mm |
| Thickness | 60 mm |
| Speed | 10 m/min |
| Power | 2.6 KW |
| Air pressure | 0.4-0.8 Mpa |
| Voltage | 380V/50HZ, 220V/60HZ, 3-Phase |
| Weight | 950 KG |
Product Demonstration
Certification
Manufacturing Facility
