Detailinformationen |
|||
| Maschinengröße: | 3200*2200*2500 (mm) | Schnittbreite: | 2400 mm |
|---|---|---|---|
| Schnittlänge: | Min 30cm - unendlich | Schnittgeschwindigkeit: | Vertikaler Schnitt 10 m/m, horizontaler Schnitt 5 s/Schnitt |
| Maschinengewicht: | 600 kg | Maximale Kraft: | 1,8 kW |
| Stromspannung: | 380V/50Hz 3P | Plc-Schnittstelle: | 5 Zoll Farbtouch Screen |
| Kernkomponenten: | SPS, Motor | Materielle Fütterung: | Synchrondruckbalken |
| Maschinendesign: | Kastenform, optimiert | Effizienz schneiden: | Höher |
| CER-Bescheinigung: | Ja | Anpassbare Breite: | Ja |
| Anpassbares Modell: | Ja | ||
| Hervorheben: | automatic computerized quilting machine,fabric panel cutting machine,computerized quilting machine with warranty |
||
Produkt-Beschreibung

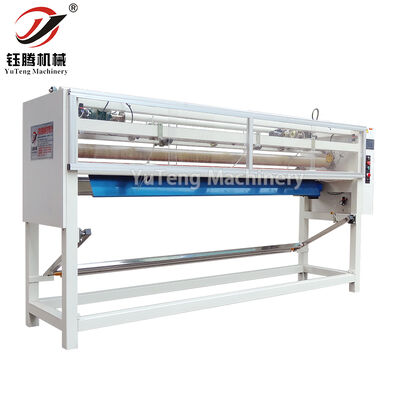

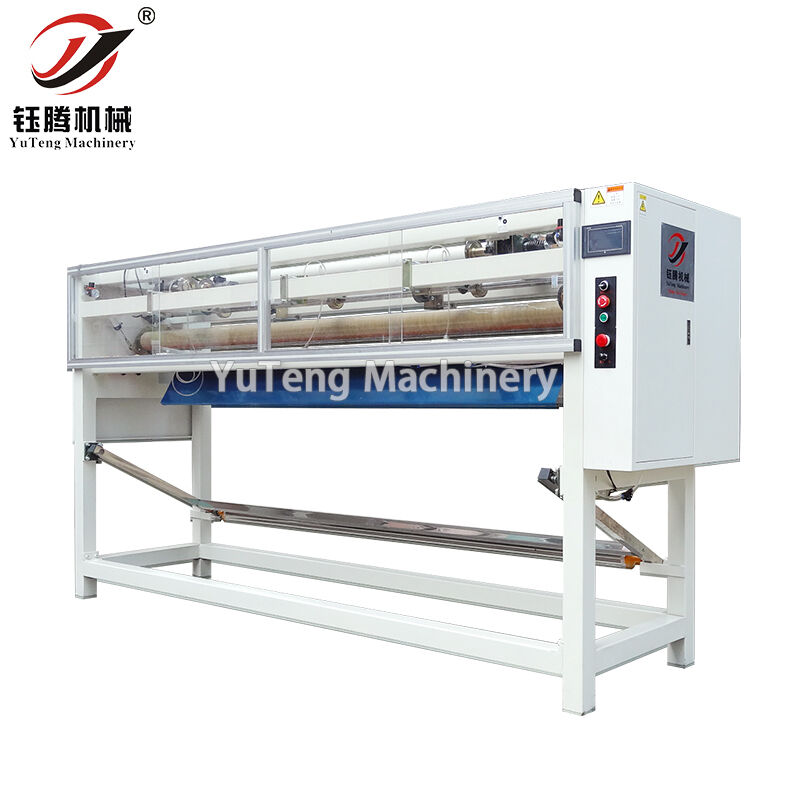

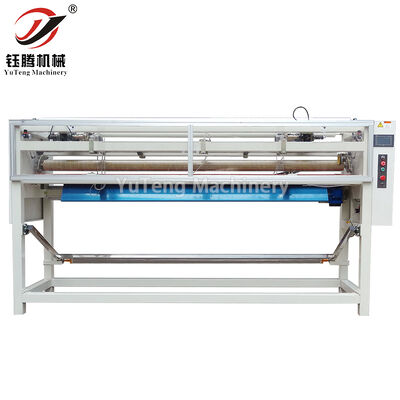

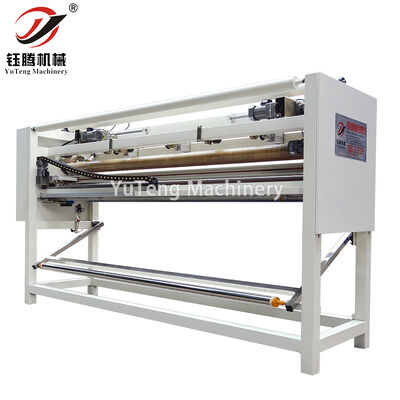

Automatic Computerized Quilting Fabric Panel Cutting Machine
Product Main Features
- National standard 5-inch color touch screen PLC interface for easy operation
- All computer materials, electrical components, and motors are CE certified for extended service life
- Electric length adjustment for both width and length cutting dimensions
- Synchronous pressure bar for even material feeding and smooth slitting, especially for thin material edge trimming
- Box-shaped optimized design improves running speed and cutting quality with higher efficiency
Applications
Ideal for mattress production, seat covers, sofa cushions, quilt covers, bedcovers, home decoration, export packaging, bedding processing, and automatic cutting after sewing. Suitable for cross-cutting, slitting, edge cutting, quilting products, composite products, or standalone operation.
Technical Parameters
| Model | YTCM96-C |
|---|---|
| Machine size (L×W×H) | 3200×2200×2500 (mm) |
| Cutting width | 2400mm (customizable) |
| Cutting length | Min 30cm to infinite |
| Cutting speed | Vertical cut 10m/min, horizontal cut 5 sec/cut |
| Machine weight | 600KGS |
| Max power | 1.8KW |
| Voltage | 380V/50HZ 3P |
* Customized models available to meet specific requirements
